Theatrelight New Zealand
Dimmers & Power Distribution
Dimmers
PID II - Professional Plug-in Dimmers for TV and Theatre
Theatrelight PID II is a general purpose Plug In dimmer and power distribution cabinet designed for TV and Film Studios, Theatres, Concert halls, or any venue requiring an intelligent and reliable dimmer installation. The PID II design supersedes the original Theatrelight PID Dimmer, and is based on software and hardware designs already well proven in the Theatrelight products Nebula—a 3u high rack-mounting professional dimmer pack, and Meteor—a wall mounting Stage or Environmental dimmer. Users familiar with these products will find the menu system and key setup of the PID II intuitive and easy to understand.
The new design uses distributed multiple micro-processors, each bin of 6 dual or quad modules having a separate microprocessor for maximum reliability. All dimmer parameters in each bin are easily set up by the user interface keys and LCD at eye height. The redundant power supplies have a proven history in Theatrelight’s previous designs. Each of the the two DMX inputs per cabinet present only one, 1/10th standard load to a control panel.
The PID II is available in a number of versions: 5 bins, 8 bins, and 10 bins per cabinet, each bin carrying 6 plug-in modules. A number of modules are available: 2 channel hotpower modules, 2 or 4 SCR dimmer or relay channels, and 2 channel SwitchDIm modules which provide either dimmed or switched power under DMX control. The PID II can also be fitted with DMX-over-ethernet communication systems for use with Artnet standard control panels
The space saving design needs only front access for all installation and maintenance, allowing the cabinets to be sited against the dimmer room walls, or back to back.
- Simple menu system with large 4 line, 20 character LCD display providing instant access to every dimmer in every bin
- 5, 8 and up to 10 bins of dimmers per cabinet, each of 6 plug-in modules
- 2 or 4 dimmers in each module
Hotpower dual channel modules
Relay dual and quad channel modules
Dimmer dual and quad channel modules
SwitchDim (dimmer+relay) dual channel modules
Toroidal filter chokes up to 400usec risetime - Easy to use menu set-up of all dimmer parameters
- All dimmer parameters held in non-volatile flash memory
- All dimmers use heavy duty SCRs.
- Fully redundant main set-up microprocessor
- Multiple distributed dimmer microprocessors, one per bin
- Redundant, high reliability power supplies, 90-265 volts AC, 45-65 Hertz
- Redundant temperature controlled cooling fans for low acoustic noise
| PIDII Cabinets Options: | |
| TLPIDII，120 channel cabinet | Cabinet for 60 Dual/Quad Channel modules (120/240 channels) |
| TLPIDII，96 channel cabinet | Cabinet for 48 Dual/Quad Channel modules (96/192 channels) |
| TLPIDII，60 channel cabinet | Cabinet for 30 Dual/Quad Channel modules (60/120 channels) |
| PIDII Dual Channel Modules Optins: |
| Dual channel Hotpower module (manually switched MCBs or RCBOs), 10/20/32 amp MCBa |
| Dual channel Relay module (DMX controlled relays), 10/20/32 amp MCBs or RCBOs |
| Dual channel Dimmer module, 10/20/32 amp MCBs or RCBOs, a:110/b:300/c:400usec risetime |
| Dual channel SwitchDim module, 10/20/32 amp MCBs or RCBOs, a:110/b:300/c:400usec risetime |
| PIDII Quad Channel Modules Options: |
| Quad channel 2.5Kw Relay module (DMX controlled hot power), 20 amp shared MCBs or RCBOs |
| Quad channel 2.5Kw Dimmer module, 20amp shared MCBs or RCBOs, 110usec risetime |
PID II Patch Panel
While the PID II dimmer cabinet offers software patch per dimmer to allow maximum flexibity in saturated dimmer installations, a hard patch system may sometimes be dictated by budget restraints (but of course only if the hard patch system saves money over a dimmer per wayline design).
The PID II Patch has been designed to provide an economical and space saving alternative to the high costs involved in supplying and wiring a hard patch system using other forms of plugs, sockets, and cables.
The PID II Patch offers the following advantages:
- Stacking gold plated patch plugs, rated at 28 amps
- Patch cords available in 18 and 28 amps rating
- Unused patch cables store out of sight inside the cabinet
- Patch field covered by locking safety door (optional) with auto trip mains isolator (optional)
- Patch plugs can be stacked 2 high with the safety door locked
- Minimal floor and wall area, and minimal wiring labour expense
- Matching design with companion PID II dimmer cabinet
The sample cabinet at right is shown fitted with a 96 dimmer patch socket panel, 3 bins of 60 patch plug-cords (180 outlets/waylines), ammeters, independent power MCBs, and a mains isolator for the 96 PID II dimmer cabinet. Cabinets can also be supplied empty where the same style is required for other switchgear or equipment.
The PID II Patch Panel is supplied ready assembled and wired to match PID II dimmer cabinets of 5, 8 and 10 bins, using a mix of the following standard panels:
- 60 way dimmer socket patch panel (plus 4 independents)
- 96 way dimmer socket patch panel (plus 6 independents)
- 60 way patch plug bin with DIN rail terminals for waylines
- Independent mains supply MCB panel
- 1U, 2U, 4U and 8U blank panels for custom fitting of DMX splitters, ammeters, voltmeters, socket panels, mains isolators, RCDs etc, or any standard 19 inch rack mount equipment
PID II Patch Panels are configured to customer specification. The Theatrelight patch plug and socket (also used in the Theatrelight Tourmaster) are designed to comply with the NZ Electrical (Safety) Regulations 2010, to comply with the IEC 60309-1 Ed 4.1 standard (Plugs, socket-outlets, and couplers for industrial purposes), and to comply with the IEC 60309-4 Ed 1.0 standard (Switched socket-outlets and connectors with or without interlock). Please consult the electrical regulations in force in your country before ordering.
Theatrelight’s proprietary patch plugs and sockets (at right) are designed as a safe, economical, space saving, high current stacking patch system for Theatre and Studio use
sometimes be dictated by budget restraints (but of course only if the hard patch system saves money over a dimmer per wayline design).
The PID II Patch has been designed to provide an economical and space saving alternative to the high costs involved in supplying and wiring a hard patch system using other forms of plugs, sockets, and cables.
The PID II Patch offers the following advantages:
Tourmaster 24 & 48 - Light weight Touring Dimmers
Theatrelight’s Tourmaster freight-saving touring dimmer cabinet is available in 24 or 48 dimmer versions, with or without stackable hard patch system. In addition to its light weight, the Tourmaster’s compact footprint of 600mm square and its universal power supply make it ideal for international touring. Dimmers are rated at 4Kw at 220-240vac (2kw at 110-120vac).
On hardpatch versions, any of the multicore connectors can be patched to any dimmer or hot power outlet with stacking patch plugs. Connector standard is Powerlock mains inputs, with Aust/NZ 3 pin sockets or Socapex multicore outlets. Other versions can be supplied on request.
- Compact footprint, only 600mm square
- Ultra lightweight for minimum touring costs
- 48x4kw patch model weighs just 105 kg
- Universal power for international touring
- 24 or 48 SCR dimmers rated at 4kw at 220-240vac (2kw at 110-120vac)
- All dimmers use heavy duty SCRs.
- 8 independent power MCBs or RCBOs, 12 socket outlets
- 48 or 96 load outputs via sockets or multicore connectors
- All outputs patchable to dimmers or independents
- 2 Patch outlets on every dimmer and independent
- Patch plugs stackable two high with patch cover on
- Lockable patch cover for safety and security
- Built in 4 channel DMX splitter, 1/10th standard RS-485 load
- Worklight sense input with timed fade to a worklights scene
| Options： |
| 24chnx4kw dimmers with softpatch, |
| 48chnx4kw dimmers with softpatch |
| AU Socket Output/Socapex/To Customer’s Order |
| Powerlock in / Powerlock in and through |
| Stackable Hardpatch Optional |

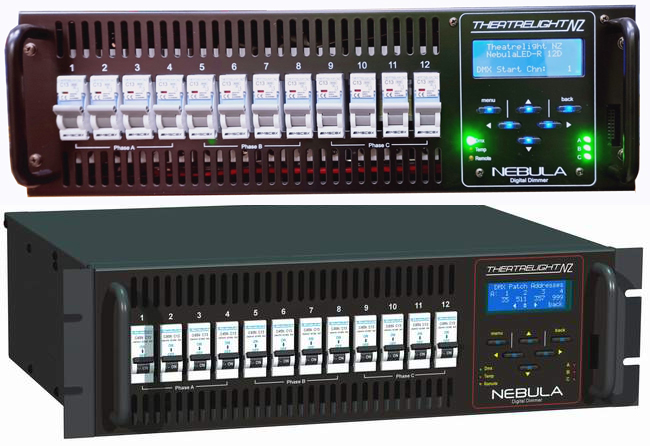

RackPack II - Digital Dimmer
The NebulaLED digital dimmer provides a wide range of features accessed through an easy to use LCD display and intuitive menu system, including the ability to smoothly control large numbers of mains-dimmable LED bulbs. Each dimmer in the Nebula may be patched to any DMX channel, allowing multiple loads such as cycloramas to be controlled efficiently from one DMX channel. The wide range of automatic input voltage and frequency sensing means this pack will work on any mains supply in the world, making it the ideal dimmer pack for touring as well as for permanent installation.
It is available in a variety of different channel and output configurations, and can be customised to order. In adddition to the normal Dimmer software the NebulaLED is also available in an Environmental software version for control by intelligent wall plates or by building management computer.
- Large 4 line, 20 character auto dimming blue LCD display
- Programmable DMX Start, DMX Patch, and DMX Fail modes
- Any dimmer (or all dimmers) may be patched to any DMX channel
- Individual Min, Max, Switch Off, and Test levels per dimmer
- Individual Proportional Level and Soft-start Time per dimmer
- Individual Dimmer Curve/Non-Dim setting per dimmer
- All dimmer parameters held in non-volatile flash memory
- All dimmers use heavy duty SCRs.
- Isolated DMX input, 1/10th standard RS-485 load
- Ideal for Theatre and Televison Studios
- Software versions for Environmental or Stages Scenes lighting
- 12 channel and 6 channel models available
| Options： |
| RackPack II, 12×13 amp MCBs or RCBOs, SCRs, Terminals / NZ Socket / Socapex |
| RackPack II, 12×20 amp MCBs or RCBOs, SCRs, Terminals / Socapex |
| RackPack II, 6×32 amp MCBs or RCBOs, SCRs, Terminals |
RackPack I - Digital Dimmer
Re-introduced due to customer demand, this updated version of Theatrelight’s original popular RackPack dimmer provides the utmost simplicity and reliability in an economical dimmer pack, ideal for hire purposes, schools and clubs. For minimum “fidde factor” so important when hiring, only the DMX start address can be changed by the user. The new model features isolated DMX input, thumbwheel DMX start address selection, and operates on universal power supply of 90-250 vac. 50/60 Hz
- Simplest possible user set-up
- Isolated DMX input, 1/10th standard RS-485 load
- Programmable DMX address
- Load protection by MCBs or RCBOs
- All dimmers use heavy duty SCRs.
| Options： |
| RackPack I, 12×13 amp MCBs or RCBOs, SCRs, Terminals / NZ Socket / Socapex |
| RackPack I, 12×20 amp MCBs or RCBOs, SCRs, Terminals / Socapex |
| RackPack I, 6×32 amp MCBs or RCBOs, SCRs, Terminals |
RackPack-Switch
The Rackpack-Switch adds a permanent power switch to every dimmer of the original popular RackPack I. With the switches On, permanent mains power is provided to nondimmable loads such as DMX controlled LED luminares, moving lights, smoke machines and motors. With the switches Off, the RackPack-S operates as a normal incandescent dimmer. The simple setup of the Rackpack-S makes it particularly suitable for schools and hire use.
| Options： |
| RackPack Switch, 12×13 amp MCBs or RCBOs, SCRs, Terminals / NZ Socket / Socapex |
PowerPack - Portable Dimmer Pack
With tough glass filled nylon handles and a sturdy steel case, these portable packs are ideal for schools and theatre, and for touring and hire use. The range now includes a dual channel 60 amp pack, and a single channel 120 amp pack for film and TV lights, both fitted with an additional manual fader control. These models also feature an extended soft-start time designed to extend the bulb life of 12 Kw and 24 Kw Fresnel luminaires on TV and film sets.
- Molded high impact plastic handles
- Interlocking feet for easy stacking
- Sturdy steel case for durability
- Isolated DMX input, 1/10th standard RS-485 load
- High immunity to mains interference
- Available in 12×10 amp, 2×60 amp, or 1×120 amp models
- All dimmers use heavy duty SCRs.
| Options： |
| PowerPack, 12×13 amp MCBs or RCBOs, DMX, Sockets, SCRs |
| PowerPack, 2×63 amp MCBs or RCBOs, DMX/faders, Cables, SCRs |
| PowerPack, 1×120 amp MCB or RCBOs, DMX/fader, Cables, SCRs |
Satellite II - Digital Dimmer
Theatrelight’s updated Satellite II is a general purpose 6 channel dimmer for use in clubs, small theatres, touring troups, or any venue requiring a simple reliable dimmer. The new LCD version is even easier to use, and provides the enhanced features of its larger cousin the RackPack II, but in an economical 6 dimmer pack.
- Large LCD display
- Easy to use menu system
- Programmable DMX start address
- Min, Max, Off, and Test level per dimmer
- Softstart and Non-Dim setting per dimmer
- Isolated DMX input, 1/10th standard RS-485 load
- All dimmers use heavy duty SCRs.
| Options： |
| Satellite 6, 6×13 amp MCBs or RCBOs, Terminal/Socket, SCRs |
| Satellite 6, 6×20 amp MCBs or RCBOs, Terminal/Socket, SCRs |
Comet II - Chase-Fade Dimmer & Controller
The Theatrelight Comet II is a 6 channel dimmer pack with a chase-fade generator and a built-in microphone to provide a wide variety of fading chases and sound-to-light effects. The chase and sound to light functions can be remotely controlled by the Comet 6 controller, making the Comet II ideal as entertaining lighting background to clubs and dance parties. The automatic pattern generator is also suited to window displays, exhibitions, and sign lighting. The new model is fitted with blue LCD with white backlight.
- DMX or stand-alone chase-fade effects
- DMX or stand-alone sound-to-light effects
- Variable chase speed and fade time
- Variable chase pattern and direction
- Isolated DMX input, 1/10th standard RS-485 load
| Options： |
| Comet 6, 1×13 amp MCBs or RCBOs, Terminal/Socket, total load 10 amps |
| Comet 6, 6×13 amp MCBs or RCBOs, Terminal/Socket, total load 60 amps |
| Comet 6 DMX Controller |
TwinFade II - Standalone dimmer
The Twinfade II is a two channel portable dimmer suitable for a wide range of lighting control in theatres, TV studios, film sets, and exhibition and display lighting. It has dimmer curves for both incandescent and mains dimmable LED bulbs, and a range of automated lighting effects such as Fire, Ramp, Random Flash and Strobe.
- Compact and highly portable
- Twinfade dims 2 channels at 10 Amps total load
- Heavy duty SCRs.
- Flash key for each channel
- MCB circuit breaker protection
- Lumen Radio Receiver card (Optional)
| Options： |
| TwinFade II, two channel dimmer, total load 2.4 kw, SCRs |
SingleFade & TwinFade - Standalone dimmers
The SingleFade and Twinfade standalone digital dimmer modules are ideal for controlling small incandescent and inductive loads. They feature a circuit breaker and the same reliable SCRs and chokes as used in our other dimmers. A number of units can be used side by side to form a small lighting control centre for location or studio lighting, exhibitions, and theatres. They are small and compact and their rugged construction enables them to withstand the rigours of touring.
- Compact and highly portable
- Singlefade dims 1 channel at 10 Amps total load
- Twinfade dims 2 channels at 10 Amps total load
- Heavy duty SCRs.
- Flash key for each channel
- MCB or RCBO circuit breaker protection
| Options： |
| SingleFade, single channel dimmer, total load 2.4 kw, SCRs |
| TwinFade, two channel dimmer, total load 2.4 kw, SCRs |
DMX-Fade - Standalone DMX Dimmer
The single and dual channel DMXFades are stand alone portable dimmers in the same chassis style as the Singlefade and Twinfade, and are ideal for controlling isolated lights by DMX. They also have a variety of automatic chases and fade chases for standalone display and exhibition lighting. Both models have a total input load rating of 10 amps, and feature digitally controlled dimming with dual SCRs per channel, MCB short-circuit protection, and toroidal chokes for noise filtering to studio requirements. Built-in soft-start circuitry ensures longer lamp life for expensive theatre, televison and film light bulbs.
- Compact and highly portable
- Singlefade dims 1 channel at 10 Amps total load
- Twinfade dims 2 channels at 10 Amps total load
- Heavy duty SCRs
- Flash key for each channel
- MCB circuit breaker protection
| Options： |
| DMXFade 1, single channel DMX dimmer, total load 2.4 kw, SCRs |
| DMXFade 2, two channel DMX dimmer, total load 2.4 kw, SCRs |
Power Distribution
QuadBox - Portable power switching unit containing four heavy duty relays.
The Theatrelight QuadBox simplifies remote control of any equipment requiring On/Off power including motors, and LED fittings.
Compact and portable, the QuadBox is ideal for adding DMX512 control of up to four remotely switched loads from one mains hot power point. Add a Theatrelight LR Mini to control the unit via Lumen Radio wireless on location, or in hard to reach areas on stage, or film and TV sets. Individually programmable On and Off security delays and DMX addresses enable the QuadBox to reduce breaker tripping by sequentially powering on loads with high in-rush current.
Features include
- Individual On and Off security delays per channel (Instant up to 30 seconds)
- Individual Channel DMX-512 addresses for each channel
- Secure DMX level control – relays switch On at 60%. Off at 40%
- Auto Power On sense option with variable security delays
- Auto DMX On/Off sense option with variable security delays
- Random On delay option to stagger in-rush current on large installations
- Long life 30 amp relay contacts
- Output via four 10amp, 3-pin NZ/AUS Sockets
- Input cable and 3-pin NZ/AUS plug 10amp max
- Single MCB (or optional 30ma RCBO) breaker protection
- Compact size with M10 bolt attachment and safety chain attachment point
- Low cost for tight budgets
Specifications:
- Dimensions: 280 mm wide x 135mm high x 76mm deep
- Weight: 2kg
- Power: 90-250VAC, 50/60Hz, maximum load 10 amps
Power consumption all relays Off: 2.5 watts
Switchpack DMX
The SwitchPack DMX is a reliable DMX controlled mains power supply for LED luminaires, moving lights, and other inductive and capactive loads. It is available in three versions: SwitchPack 1210 (12 channels at 10 amps), SwitchPack 1220 (12 channels at 20 amps) and SwitchPack 630 (6 channels at 32 amps), with terminal or a selection of socket backs.
The standard 19 inch rackmount case contains either 6 or 12 Solid State Relays for remote switching of loads by DMX control. Solid state relays generate very little electromagnetic interference compared to hard switched Relay contacts.
- Solid State Relays use dual SCRs (not Triacs)
- SCRs are continuous pulse train driven for no minimum load limitation requirement
- On or Off states may be controlled by DMX remotely, or locally from the internally lit front panel pushbuttons.
- When DMX controlled, channels turn at 60% and turn off at 40%. This hysteresis provides flicker-free On/Off switching
- Programmable security delays to prevent switch on off of critical loads
- Manually controlled channels On/Off state always restored on power up
- DMX controlled channels always power up Off
- Keyboard disable feature to prevent unauthorised operation
- Universal power supply: 90-240vac, 50-60 hertz.
| Options： |
| 12 channels of 13 amp MCBs or RCBOs. Terminals / NZ Socket / Socapex / to customer’s order |
| 12 channels of 20 amp MCBs or RCBOs. Terminals / Socapex / to customer’s order |
| 6 channels of 32 amp MCBs or RCBOs. Terminal or to customer’s order |
Contact 12 - Relay Switch
Easy to set up and use, the Contact 12 provides switched power via DMX control with user settable security delays, or auto sequential power on for Moving Lights, LED luminaires, fireworks, motors, and any other appliance requiring reliable On/Off power. The Auto Sequential On mode is particularly useful where large installations of LEDs and Moving lights trip MCBs when all circuits are switched on together. 30 amp rated Omron relays provide longterm reliability. The Contact 12 is available in 10 amp, 3 pin socket or terminal versions, and 20 amp Socapex or terminal versions.
| Options： |
| 12 channels of 13 amp MCBs or RCBOs with Terminals / NZ Socket / Socapex, or to customer’s ordres |
| 12 channels of 20 amp MCBs or RCBOs with Terminals / Socapex |
DB Panel
The DB Panel is a front access only version of Theatrelight’s popular DB Pack. the DB panel is designed primarily for wall mounting, but the units can also be rack mounted, or used as a portable pack.
| Options： |
| See brochure or data sheet for options and codes |
- Data Sheet
- Manual
DB-Pack
The DB-Pack is a 19 iinck rack mount power distribution power supply for LED luminaires, moving lights, and other inductive and capactive loads which need manually switched power. It is available in a number of versions: 12 channels at 10 amps with ANZ socket or terminal outlets, and 12 channels at 20 amps with Socapex or termial outlerts,
| Options： |
| 12 channels of 10 amp MCBs or RCBOs. Available with NZ (Aust) socket / Terminal / Socapex, or to order |
| 12 channels of 20 amp MCBs or RCBOs. Available with NZ (Aust) socket / Socapex, or to order |
Theatrelight Film and Television Power Distribution Boxes
Theatrelight custom manufactures high power distribution boxes for Film
and Television Studios. With access to a large range of molded touring
boxes, we can manufacture any size of of distribution box to your electrical
design, with waterproofing to your specification
Environmental Lighting Control
Meteor - Wallmount Dimmer
The Meteor meets the increasing need for control of environmental and architectural lighting for power saving and mood effects with the same control features as the Nebula, but in a wall mount cabinet for permanent installtion. The cabinet has easy access for supply and load wiring with convenient cable duct exits at the top and the bottom of the cabinet. Two matching outlet panels are available for the Meteor – a sockets only panel carrying 12 sockets, useful with an externable patch cord system, or a built-in 12 to 24 waylines patch system using Tapon plugs patching into the 12 dimmer sockets, with an additional 3 socket for independent power. The Meteor may be controlled by DMX, or by intelligent wall plate controllers, building management computer, or by DMX-over-Ethernet (Art-Net, ShowNet, or Streaming ACN) using the Theatrelight ED2 receiver.
- Easy to use menu system
- Large 4 line LCD display
- Isolated DMX input, 1/10th standard RS-485 load
- Programmable DMX start address
- 0 to 10 volt analogue control
- High immunity to mains interference
- Load protection by MCBs or RCBOs
- All dimmers use heavy duty SCRs
| Options： |
| Meteor, 12×13 amp MCBs or RCBOs, SCRs, Internal terminal output |
| Meteor, 6×32 amp MCBs or RCBOs, SCRs, Internal terminal output |
| Meteor with 12 sockets only outlet box |
| Meteor with 12 sockets to 24 patch plugs outlet box |
| Intelligent Wallplate Controller |
Quasar - Architectural Digital Dimmer
The Quasar digital dimmer has many of the features of its big brother the Nebula, but built into either a smaller 2 U chassis for mounting in 19 inch racks, or as a compact Wallmount unit for permanent installation in smaller venues. It can be supplied in two software models: entertainment and environmental, and a number of output configurations: 6×2.5 Kw standard with socket or terminal outputs, or 12x1Kw in terminal versions only. The Quasar can be controlled by DMX, intelligent wallplates, or building control computer.
- DMX individual dimmer Patch
- Min, Max, Off, Non-dim & Test level per dimmer
- Proportional level setting per dimmer
- All dimmers use heavy duty SCRs
- Isolated DMX input, 1/10th standard RS-485 load
- Entertainment or Environmental software
- 6 channel and 12 channel models
- DMX or Wallplate controlled
- Rack mount or Wallmount versions
| Options： |
| Wallmount Quasar 6/12 dimmers, SCRs, Internal terminal output |
| Intelligent Wallplate Controller |
NebulaLED - Digital Dimmer
The NebulaLED digital dimmer provides a wide range of features accessed through an easy to use LCD display and intuitive menu system, including the ability to smoothly control large numbers of mains-dimmable LED bulbs. Each dimmer in the Nebula may be patched to any DMX channel, allowing multiple loads such as cycloramas to be controlled efficiently from one DMX channel. The wide range of automatic input voltage and frequency sensing means this pack will work on any mains supply in the world, making it the ideal dimmer pack for touring as well as for permanent installation.
It is available in a variety of different channel and output configurations, and can be customised to order. In adddition to the normal Dimmer software the NebulaLED is also available in an Environmental software version for control by intelligent wall plates or by building management computer.
- Large 4 line, 20 character auto dimming blue LCD display
- Programmable DMX Start, DMX Patch, and DMX Fail modes
- Any dimmer (or all dimmers) may be patched to any DMX channel
- Individual Min, Max, Switch Off, and Test levels per dimmer
- Individual Proportional Level and Soft-start Time per dimmer
- Individual Dimmer Curve/Non-Dim setting per dimmer
- All dimmers use heavy duty SCRs
- All dimmer parameters held in non-volatile flash memory
- Isolated DMX input, 1/10th standard RS-485 load
- Ideal for Theatre and Televison Studios
- Software versions for Environmental or Stages Scenes lighting
- 12 channel and 6 channel models available
| Options： |
| NebulaLED, 12×13 amp MCBs or RCBOs, Available with NZ (Aust) socket / Terminal / Socapex, or to customr’s order, SCRs |
| NebulaLED, 6×32 amp MCBs, with Terminal,SCRs |
| Intelligent Wallplate Controller |
MoodsetLED - Digital Environmental Lighting Control
These new versions of Theatrelight’s original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.
- Three preset levels
- Autofade with fade times from 5 sec to 10 min
- External level and fade time control
- Control of incandescent and inductive loads
- Security mode imitates occupied premises
- Alarm mode switches lights to full in an emergency
- Soft-start for extended lamp life
- Available in 8 Amp and 20 Amp modules
| Options： |
| MoodsetLED, 8 Amp module, SCRs |
| MoodsetLED, 20 Amp module, SCRs |
| Moodset 6 Key Flushplate, White/Black |
Moodset - Digital Environmental Lighting Control
These new versions of Theatrelight’s original Moodsets provide smooth dimming of both incandescent bulbs and leading edge mains dimmable LED bulbs. Applications include restaurants, hotel lobbies/ballrooms/chandeliers, museums and art galleries, theatre house lights, chicken sheds, and other industrial and horticultural uses requiring the smooth dimming of large numbers of LED bulbs.
- Three preset levels
- Autofade with fade times from 5 sec to 10 min
- External level and fade time control
- Control of incandescent and inductive loads
- Security mode imitates occupied premises
- Alarm mode switches lights to full in an emergency
- Soft-start for extended lamp life
- Available in 8 Amp and 20 Amp modules
| Options： |
| Moodset, 8 Amp module, SCRs |
| Moodset, 20 Amp module, SCRs |
| Moodset 6 Key Flushplate, White/Black |
